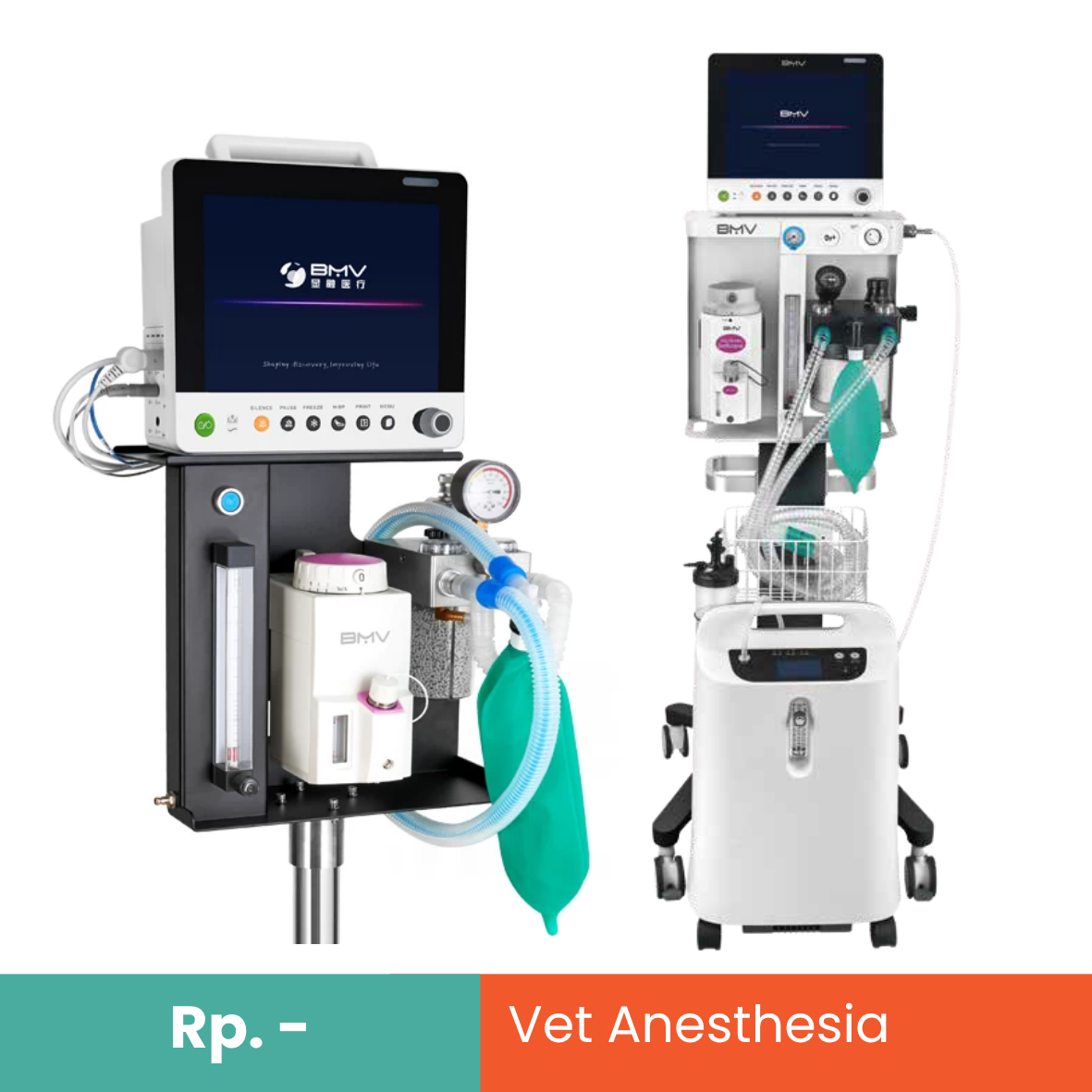

Veterinary Anesthesia Machine System BMV BAM 7 Pro

Rp. -

Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always received good reputation from clients around the world. It is designed for safe, simple and controllable inhalation anesthesia for animals. The Veterinary Anesthesia System provides rapid control of anesthetic depth with little resistance to respiration from high to low acuity, simple to complex cases, small to big animals, like Dogs, Cats, Rabbits, Mice, Birds, etc.

Advanced and practical design with pipeline concealed

Compact, sleek and integrated. It helps tonreduce the impact upon operation from leakage, earing,twisting of exposed pipework improving the reliability of products.

Advanced, safe and reliable APL valve design

It's unnecessary to push to release pressure and safer in controlling airway pressure.

ACGO transfer switch design

ACGO transfer switch design conveniently transfer with a slight switch is more suitable tobneonatal pets

Machine mounting system

Mobile trolly/Wall mount/ pendant mount.

Special veterinary Ca(OH)2 canister

Greatly reducing the possibility of circuit and mechanical dead space and increasing the security of anesthesia in operations..

• Animals:1-100kgs;Rats,Cats,Dogs,Rabbits,Pigs,Monkeys etc.
  Respiration modes:
  Passive Breathing, Active Breathing(Cycle Breathing Circuit-Airbag)Active Breathing (Open Breathing Circuit-Rodents)
  Active Breathing (Cycle Breathing Circuit-Bellow) Active Breathing(“T" Circuits)

• Oz Flush:30-70L/min,

• Working Pressure:0.15 0.55Mpa

• With APL(Airway Pressure Valve), prevent over-high pressure that will damage animals With COz absorbing

• With Inspiration Valves and Expiration Valves, could clearly watch animals breathing status

• T V: Active Breathing: according to animals spontaneous breathing Passive Breathing:10ml 3000ml

• BPM: Active Breathing: according to animals spontaneous breathing. Passive Breathing: according to veterinarians operation

• 1/E: Active Breathing: according to animals spontaneous breathing. Passive Breathing: according to a veterinarian operation

• Monitoring Parameter: dynamic airway pressure

• Dimensions(main unit):≤450×220×390mm(WxD×H)

• Vaporizer: Quick pour fill, with Flow, Pressure and Temperature compensation function

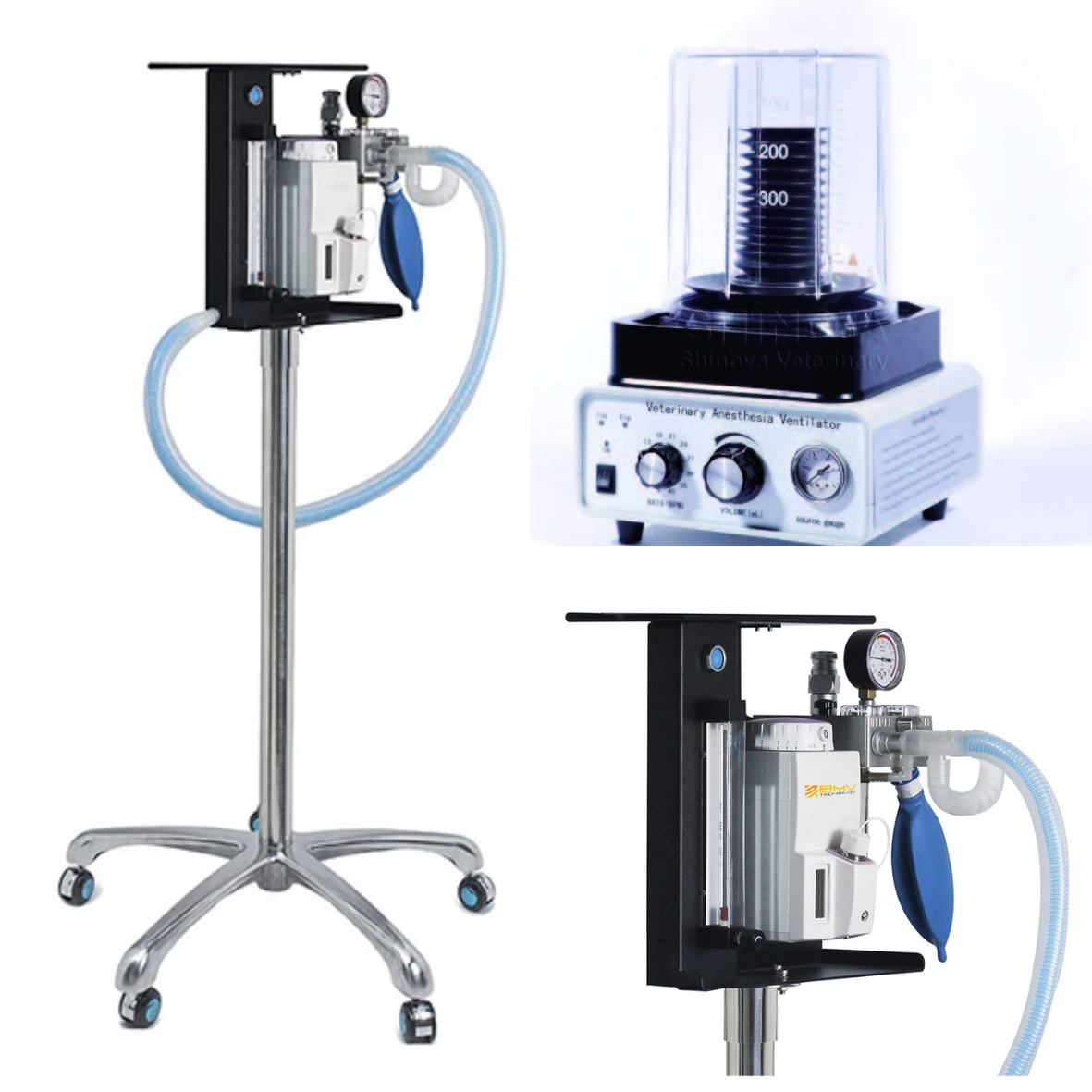

Anesthesia Ventilator

• Operation interface is obvious and clear.

• The frame is made of metal alloy,with spray plastic process,durable and lasting.

• Professional usage methods, some parameters could be automatically set.

• Standard connector could match with various brands of anesthesia machine.

• Tidal Volume:0-1500mL

• Respiratory Frequency:3-60 bpm

• 11E ratio:1:2

• Dimensions(excluding Bellow):≤230×270×130mm(WxDxH)

• AC:220∨±22∨,50Hz±1Hz; Optional:AC:110V,60Hz

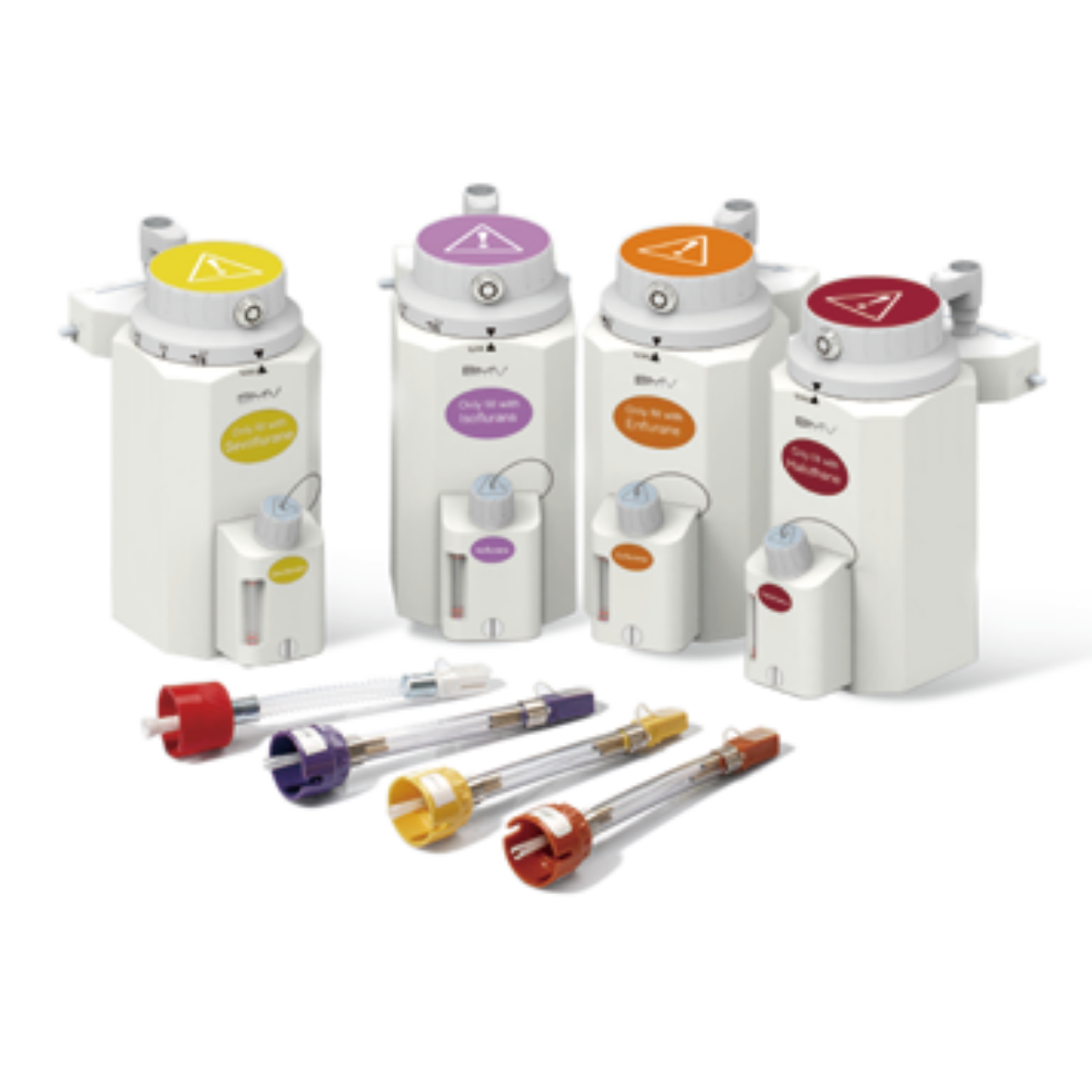

Anesthesia Vaporizer

• Output is continuously adjustable

• With round and scaled window for watch agent level

• Pour fill

• With Flow, Pressure and Temperature compensation function Flow Range: 0.2-15L/min;

• Temperature: 15-35C

• Volume: 205ml

• Agent Available:

• Packing Size:7kgs

Standard Configuration

Optional accessories
