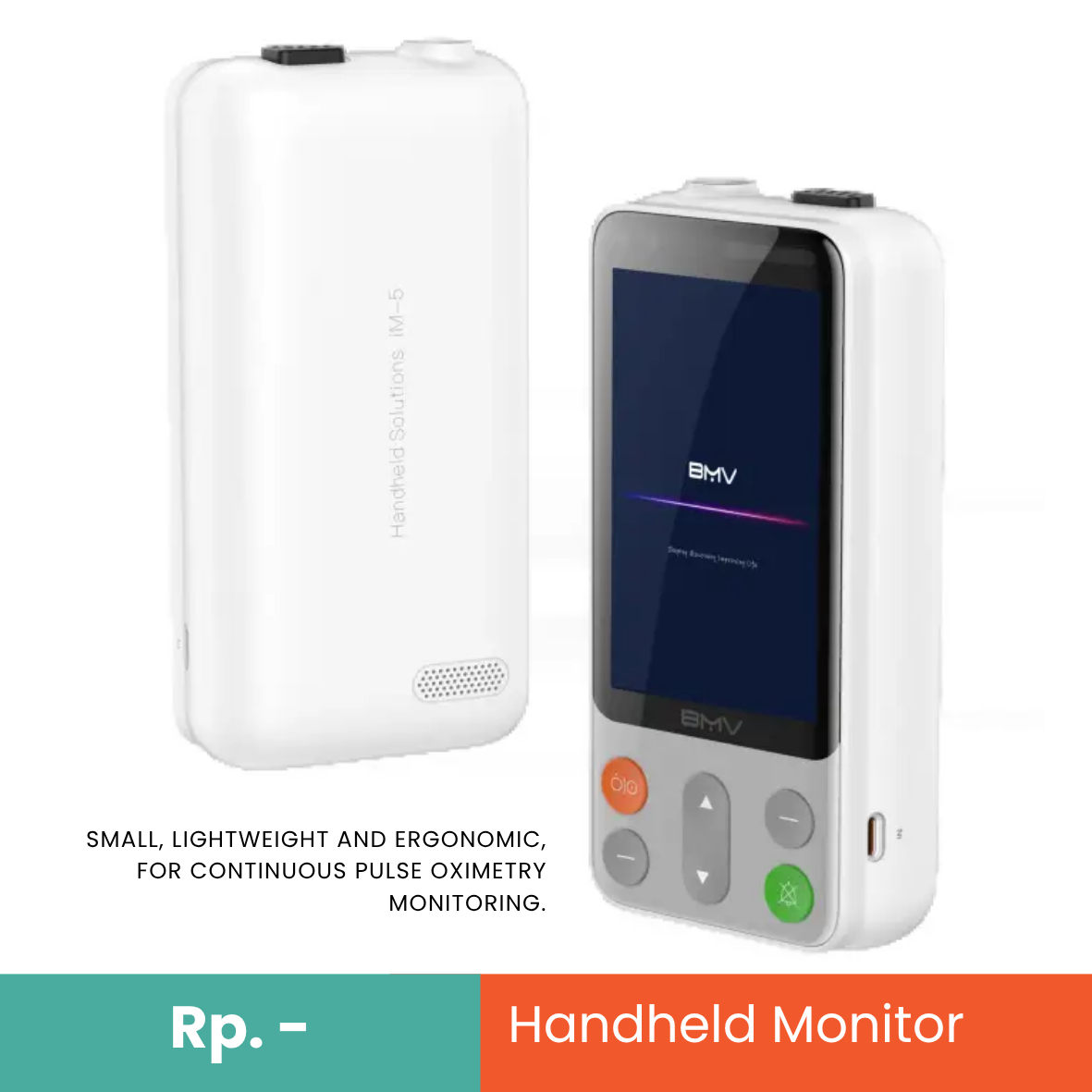

Vet Handheld Pulse Oximetry Monitor BMV iM5

Rp. -

• • Accurate measurement in 0.05% low perfusion lndex, the word leading production in the movement environment.

  • Provides PI parameters (perfusion index 0.05%-20%)

  • Accurate measurement in all kinds of extreme environments such as neonatal and shock patients

  • NIBP adopt

• SAWAA(Self-Adaptive-Waveform-Amplitude-Adjust)algorithm and

• SAFD(Selt-Adaptive-Fas-Deflation) algorithm

  • View up to 100 user IDs through the 3.5” color TFT

  • Multiple vital signs measurement parameters for collocation optional

• NIBP、 Spo2、 Temp

• NIBP、 Temp

• Spo2、 Temp

• Spo2、 etCo2

  • Two measurements mode: Spot, Monitoring

  • Data storage capabilities include: historical data view and trend chart back to see

  • Monitoring mode: 48 hours of continuous data storage

  • USB data upload: Transfer data to PC via cable

  • Spot mode: 100 user IDs, each user can store 200sets data

  • Audio and visual alarms: set upper and lower limit values

  • Re-chargeable Lithium ion battery power supply

  • Optional Charging dock

NIBT

• Pulse rate range: 40~240bpm

• NIBP measurement accuracy: 3mmHg

• Pulse rate measurement accuracy: ≤2% (≥100bpm) or 2 beats/min (<100bpm)

• Independent software protection pressure

- Big animal: 300mmHg - Small animal: 300mmHg

• Independent hardware protection pressure

- Big animal: 320~330mmHg - Small animal: 320~330mmHg

OXYGEN SATURATION (%SpO2)

• Measurement range:

SpO2: 0-100% PR: 0-500 bpm

Perfusion index: 0.05%-20%

• Accuracy range:

SpO2 saturation: 70-100% Pulse rate: 20-500 bpm

Perfusion lndex: 0.025%-20%

• Measurement accuracy

- SpO2 :

Large animal (including pediatric) + 2 digit (70-100%) (<70%

not defined)

Small animal + 3 digits (<70% not defined)

On motion condition + 3 digit

PR: Large/small animal (including pediatric)+ 3 digits

On motion condition+ 3 digits Perfusion lndex: 0.05%-20%

• Resolution

- SpO2 saturation: 1 %

Pulse rate: 1 bpm

• Temperature

Measurement range: 25~45

Resolution: 0.1

Accuracy: 0.1

• Power Type: Lithium ion battery

• Operation time: 8 hours for normal operation

• Temperature: Operating: 0℃℃~45 Starage / Transportation:-20℃℃~65

• Humidity: Operating: 15% to 90% noncondensing

• Storage: 0% to 95% noncondensing

• Altitude: Operating Altitude: Up to 5000 meters

• Size: Dimension 146*67*30mm Weight 250g

CO2

• Measurement range:

ETCO2:0-150mmHg (0~19.7%) (0~20kPa) RR:3-

150bpm

• Resolution:

ETCO2: 0.1mmHg RR: 1bpm

• Setting compensation parameters

Pressure range: 450~850mmHg

Oxygen range: 0~100%

Equilibrium gas: N20,He

• Power Reuirements: 5.0vdc 5%, 1A(Module average power consumption is less than 1.3W)

• Temperature: Work Environment: 10~40

Storage Environment: -40~70

• Humidity: Work Environment: 10%~90% RH

Storage Environment: <90% RH

Features / Specs

• 11032A18 iM5S Vital Signs Monitor SpO2

• 11032A19 iM5ST Vital Signs Monitor SpO2 + TEMP

• 11032A20 iM5NT Vital Signs Monitor NIBP + TEMP

• 11032016 iM5T Vital Signs Monitor SpO2 + NIBP + TEMP

• 11032A21 iM5C Vital Signs Monitor SpO2 + Main Stream etCO2

• 11032A22 iM5SC Vital Signs Monitor SpO2 +Side Stream etCO2

• 11032A23 iM5E Vital Signs Monitor SpO2 + NIBP + Main Stream etCO2

• 11032A24 iM5SE Vital Signs Monitor SpO2 + NIBP + Side Stream etCO2
