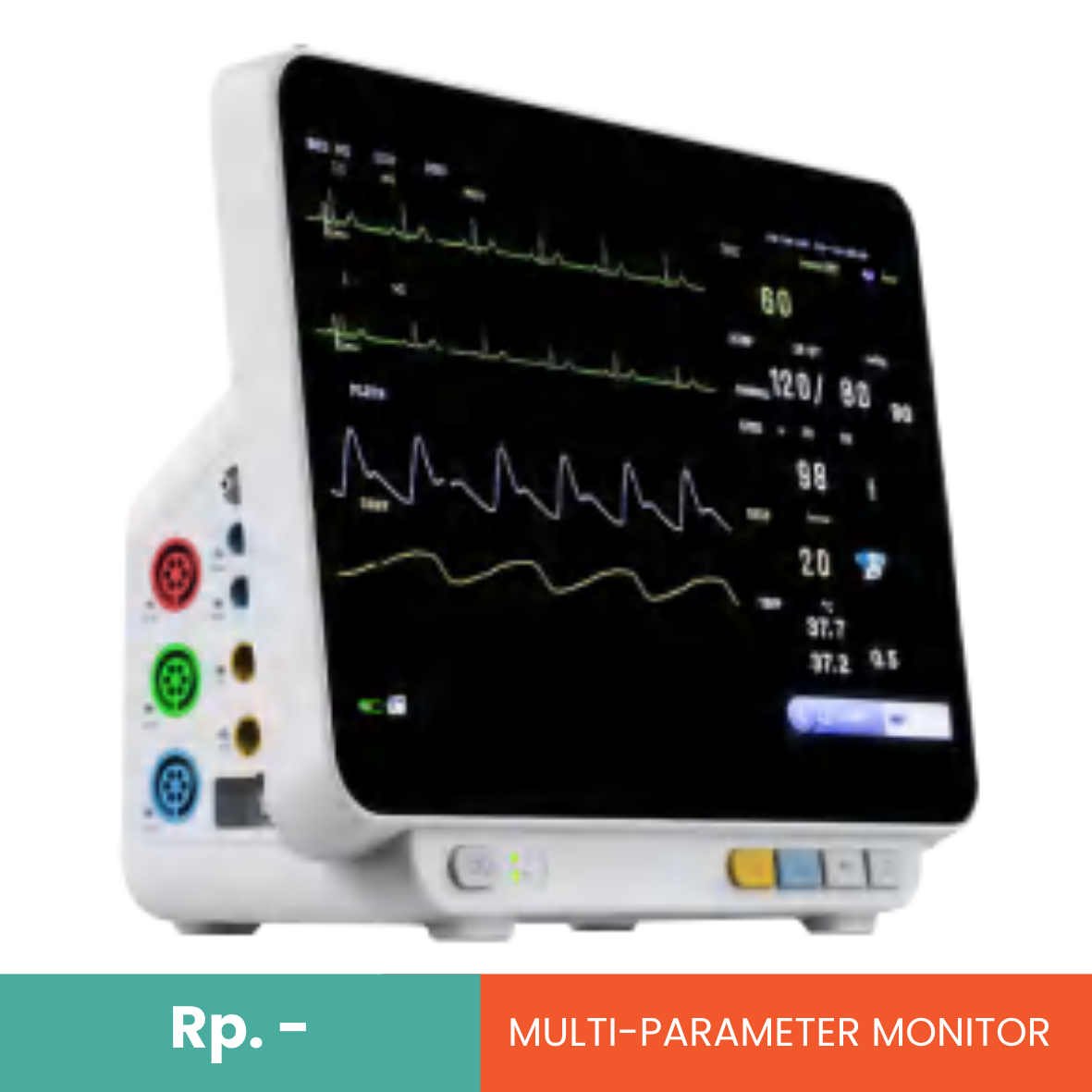

SM14PRO VET MULTI-PARAMETER MONITOR

Features

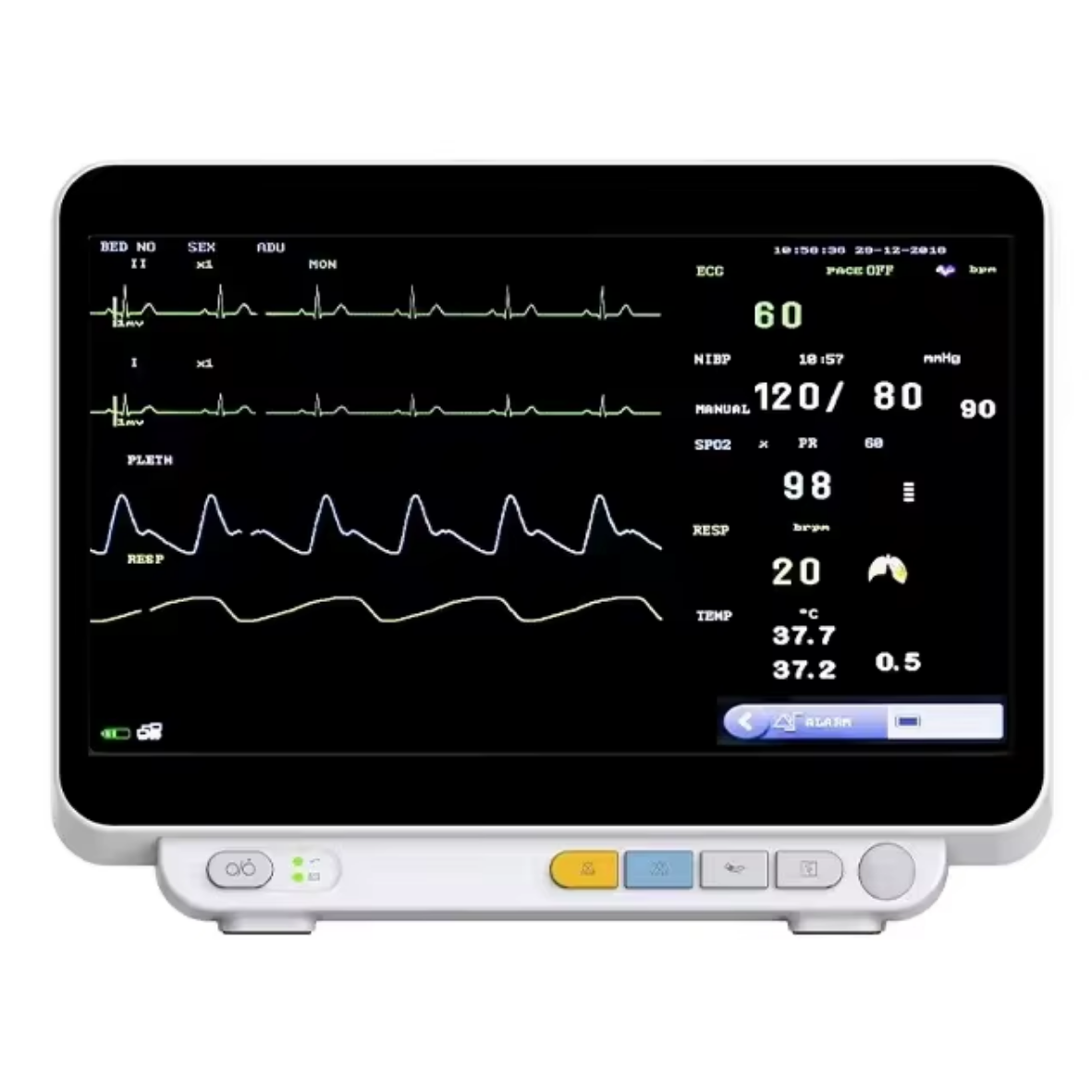

1.14-inch color TFT LCD display, multi-language operation interface.
2. It has standard interface, respiratory oxygenation chart, trend coexistence interface, large character interface, and blood pressure list interface.
3. It is convenient for users to observe waveforms and parameter colors can be configured at will.
4. All operations can be completed through buttons and knobs.
5. Simulates blood oxygen technology, resists motion interference, resists ambient light interference, and can be measured during weak perfusion.
6. Built-in rechargeable lithium battery, AC and DC dual-purpose, enabling uninterrupted monitoring.
7. High-definition display, 170° large viewing angle.
8. Multi-parameter monitoring technology, providing ECG, impedance respiration, blood oxygen, non-invasive blood pressure, and body temperature monitoring.
9. The equipment has excellent parameter monitoring accuracy and excellent anti-interference ability.

Product Name

Pet multi-parameter monitor

Model

VM14PRO

Technical Parameters

Product Features

ECG, SPO2, NIBP, TEMP, RESP

Electrical Specifications

100-240V AC, 50/60HZ

Maximum input power

70VA

Fuse

F2AL 250V

Battery

11.1V 2200mAh rechargeable lithium battery

Standard electric shock resistance type

Class I electric shock resistant equipment

EMC category

Class A

Standard level of resistance to electric shock

CF type

Working environment conditions

Working temperature 0-40°C

Working humidity ≤85%

Shipping and storage conditions

Shipping and storage temperature -20-60°C

Transportation and storage humidity ≤93%

Way of working

Continuously working
