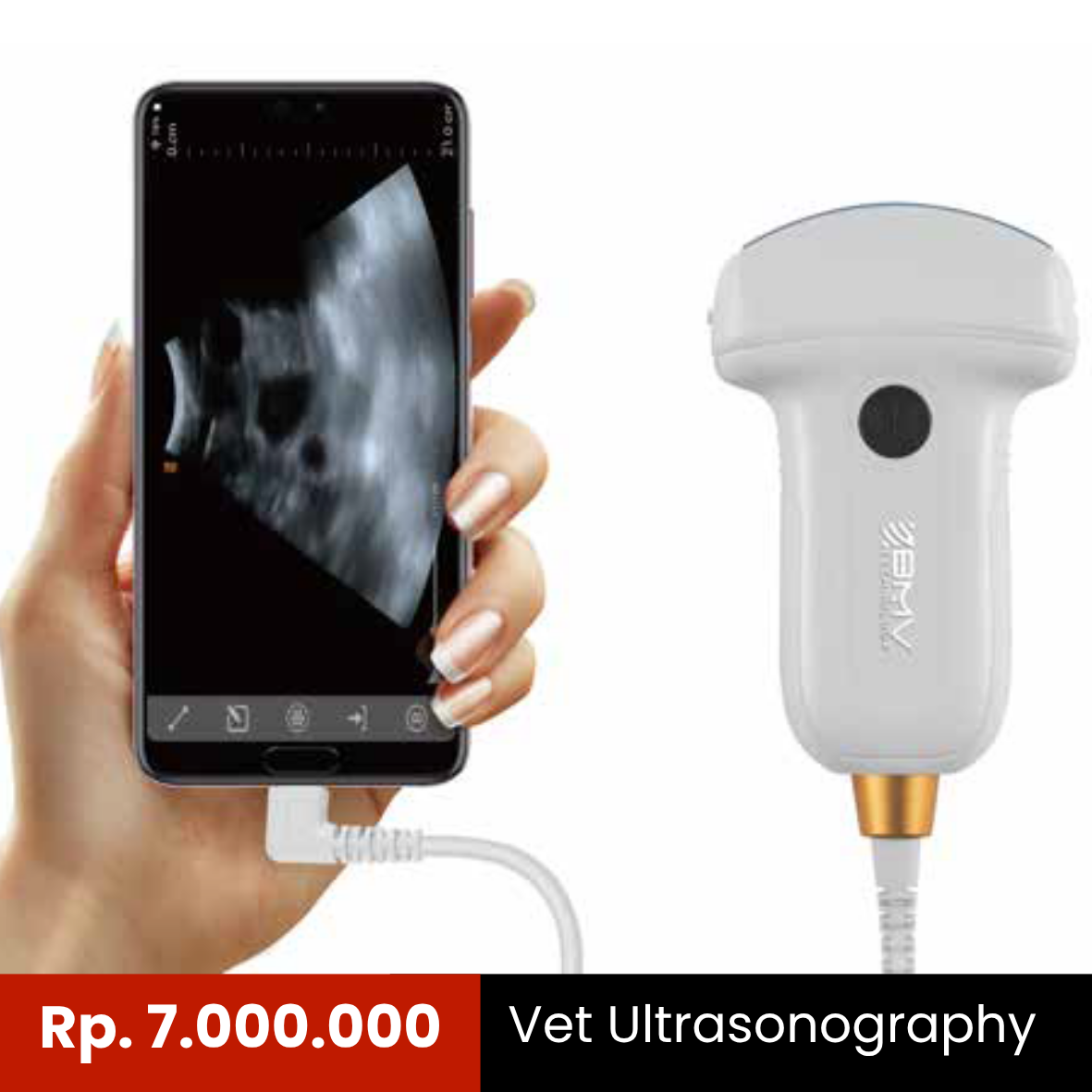

Portable Vet USG BMV MX 5 Go

Rp. 7.000.000

MX5 portable ultrasound system comprises a set of handheld ultrasound transducers that connect via USB to a compatible Android smart device, such as a smartphone or tablet, to help healthcare professionals make fast, accurate decisions in a wide range of applications. The system includes the L10-5 Linear Array Transducer, C5-2 Convex Array Transducer, and P4-2 Phased Array Transducer, allowing doctors to deal with a wide range of essential diagnostic situations for acute care, internal medicine, musculoskeletal, office practice, especially the great potential for civil emergency medicine.

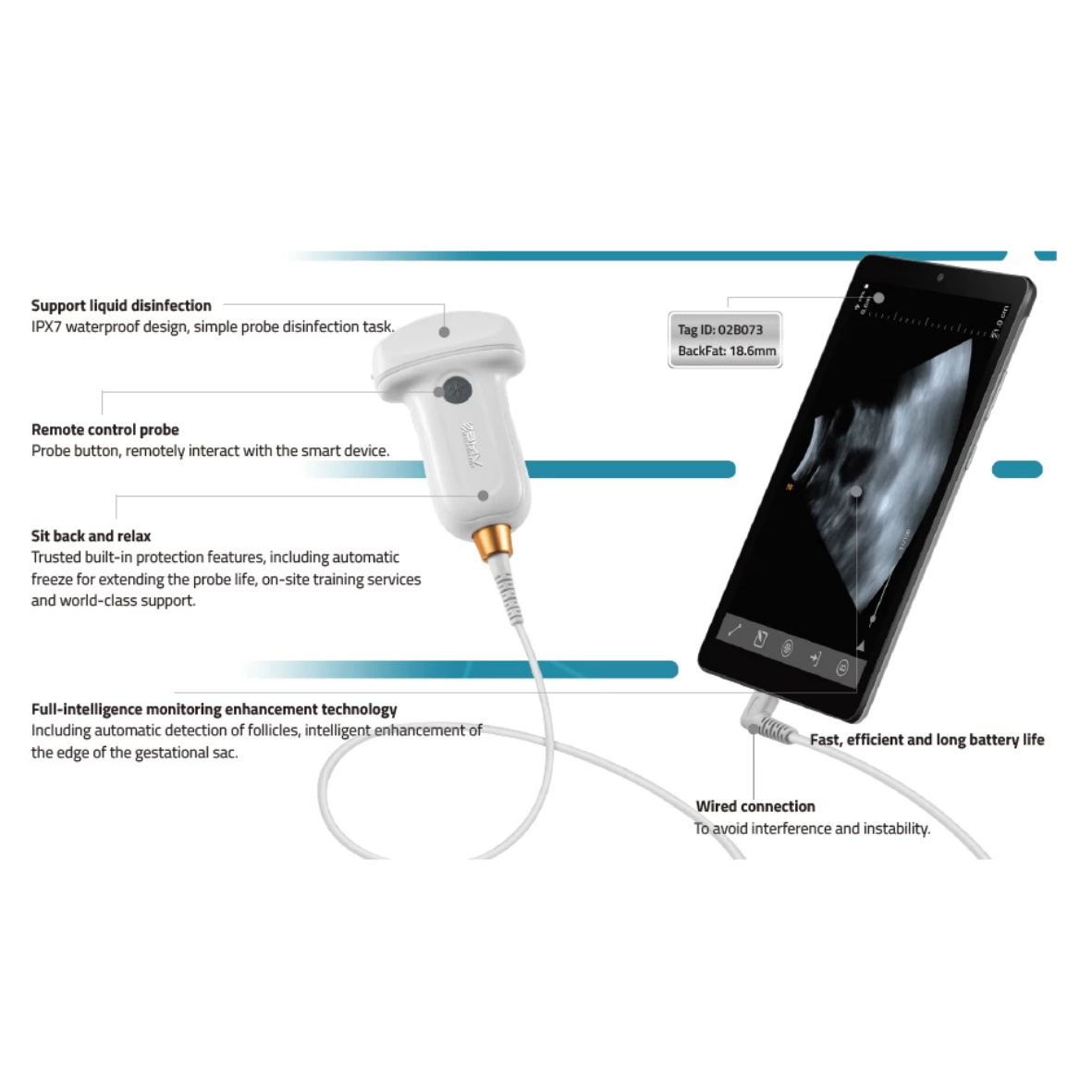

App-based ultrasound – anywhere, anytime
Just download the MX5 ultrasound app, plug in the transducer, and you're set. Meet patients at the point-of-care, make a faster diagnosis, and deliver care whenever it's needed.

Focused Applications in POC
The MX5 realizes the benefits of workflow efficiency while providing superior imaging for rapid bedside patient assessment. With an intuitive design, ease of operation, incredible image quality, slim go capability, touch-screen gesture, and simplified intuitive workflow, the MX5 provides diagnostic confidence for focused applications of acute care, internal medicine, musculoskeletal, office practice.

Great potential for civil emergency medicine & midwife patient care
MX5 ultrasound provides high-quality imaging and is routinely used in many clinical environments, from hospital bedsides and clinics, even in a civil accident and emergency medicine, MX5 mobile ultrasound can be a useful supplement to other diagnostic tools. In hospitals, medical practices and home visits, MX5 can equally underpin rapid point-of-care diagnoses, avoiding delays or the need for patients to travel.

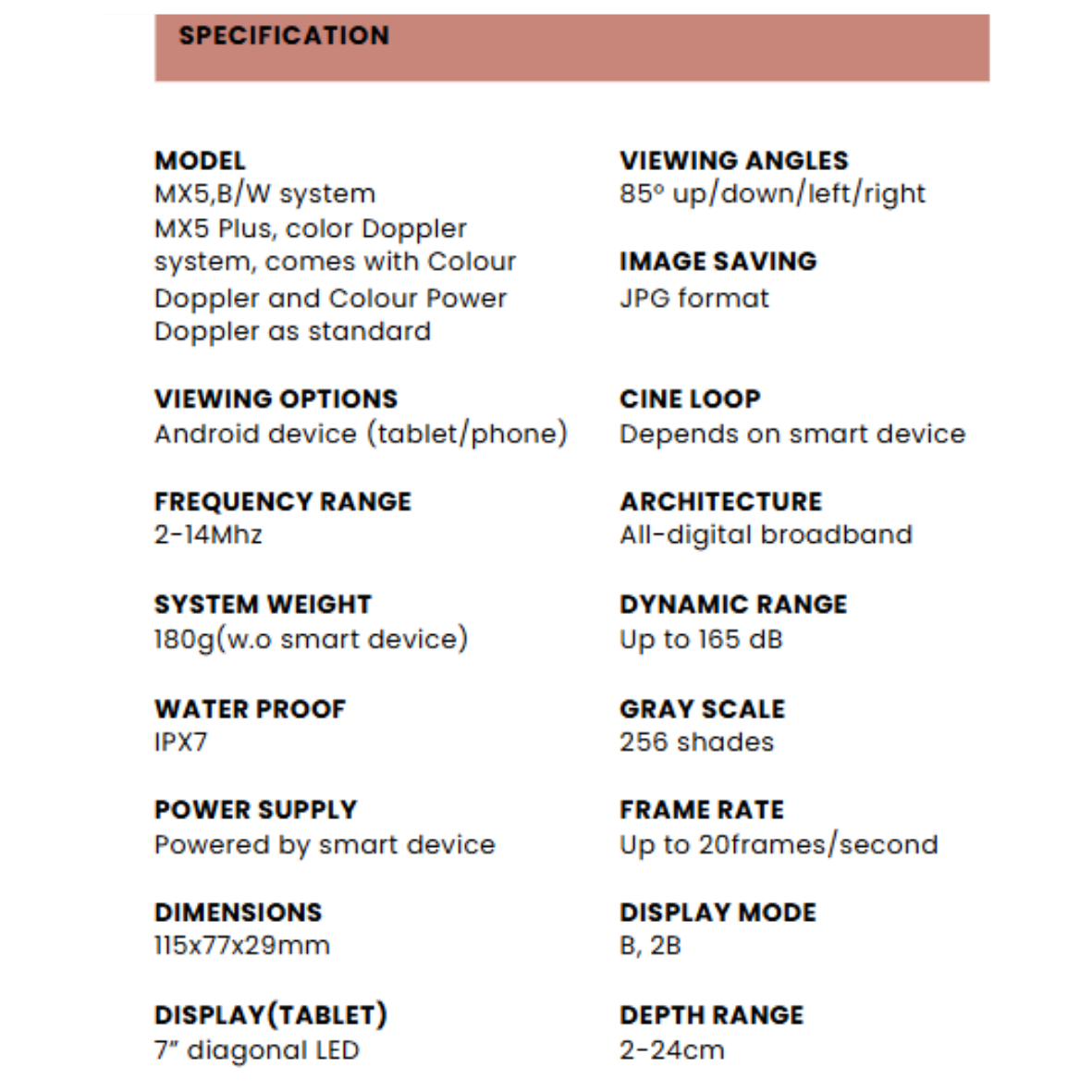

Model

MX5,B/W system

MX5 Plus, color Doppler system, comes with Colour

Doppler and Colour Power Doppler as standard

Viewing options : Android device (tablet/phone)

Frequency range : 2-14Mhz

System weight : 180g(w.o smart device)

Water proof : IPX7

POWER SUPPLY : Powered by smart device

Dimensions : 115x77x29mm

Display(Tablet) : 7” diagonal LED

Viewing Angles : 85° up/down/left/right

Image saving : JPG format

Cine loop : Depends on smart device

Architecture : All-digital broadband

Dynamic range : Up to 165 dB

Gray scale : 256 shades

Frame rate : Up to 20frames/second

Display mode : B, 2B

Depth range : 2-24cm
