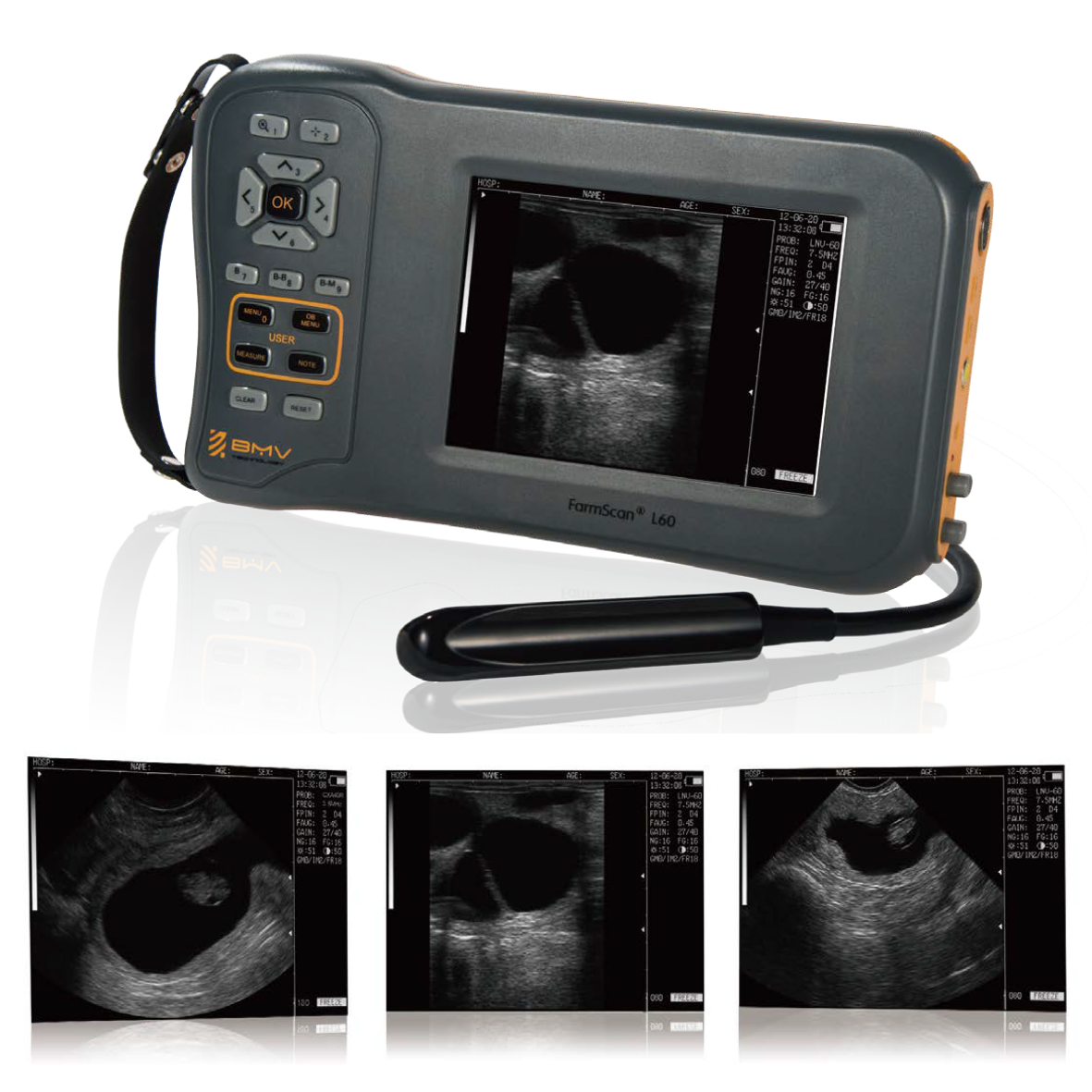

FarmScan® L60 Compact Handhold Veterinary Ultrasound

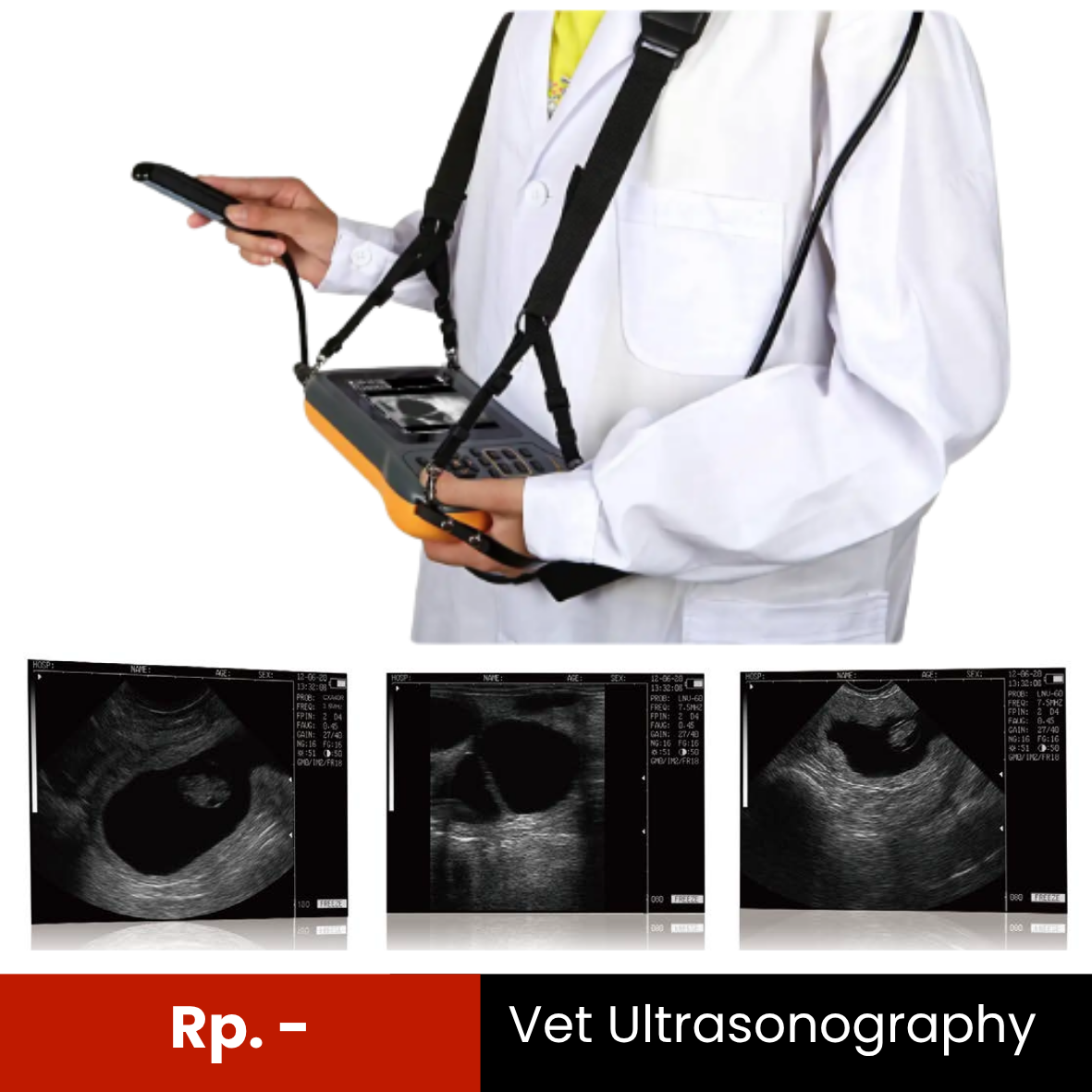

Vet Ultrasonography
Every vets should own one, provide basic veterinary imaging
FarmScan® L60, featuring premium image quality, considerate design for comfortable, fast and reliable detection of pregancy and gynecological diagnosic in difficlult field conditions on a dairly basis.
Rp. -
Fast and reliable pregnancy from
28th day on cows
13th on mares
25th on sheep or goat

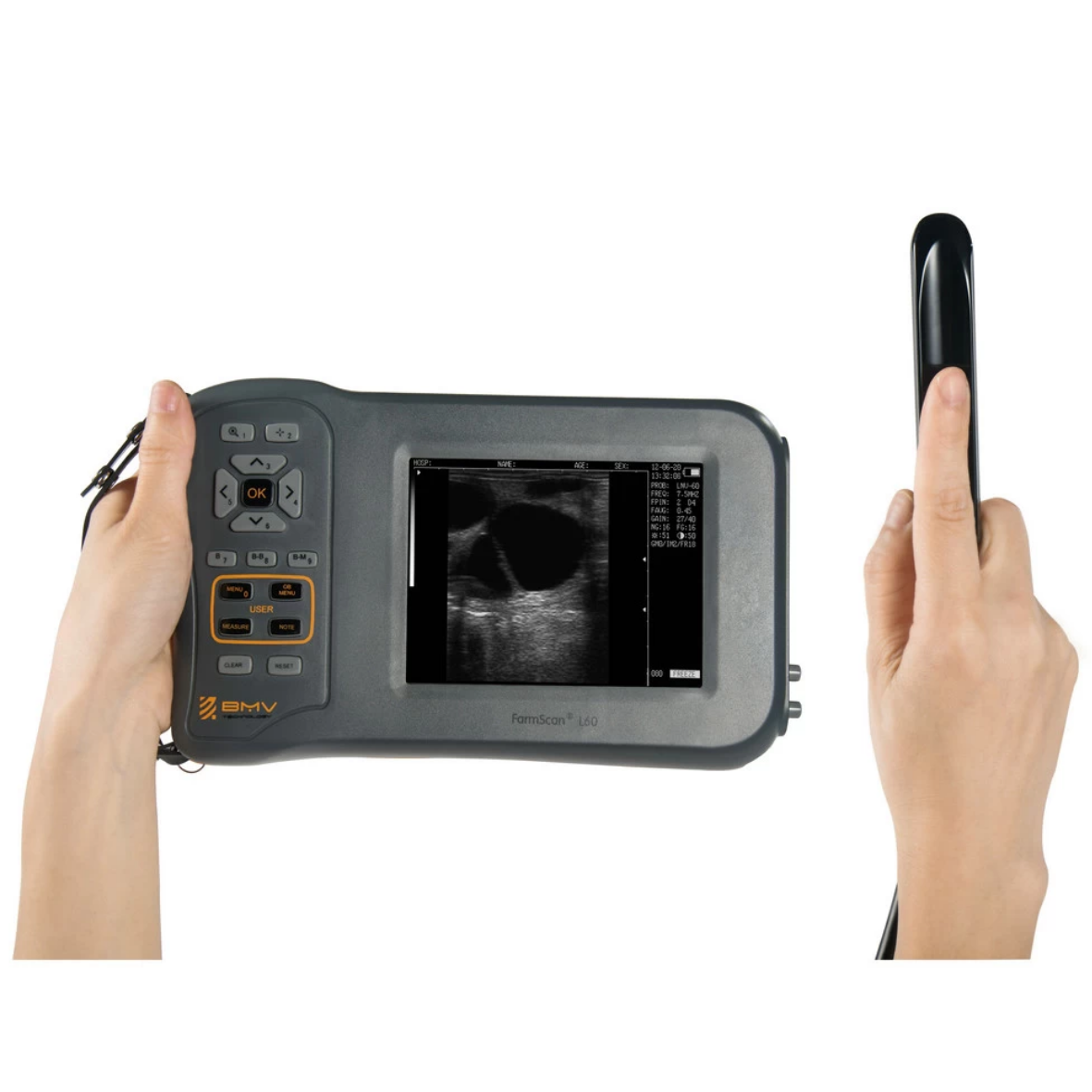

Maximum comfort while you work
Lightweight, only 0.6kg;
5.8-inch WVGA LCD and excellent imaging quality and ergonomic design;
Versatile and easy use for all veterinary applications on bovine, equine, swine, etc;
Li-ion battery with 3 operating hours;
Images and videos export via USB 2.0 with 450 frame cine loop inside;
Software & Report for reproductive system, and measurement for distance, area, circumference, volume, angel, heart rate, etc.
Patent design:
Rectal Convex Probe (wide field of view and deeper penetration) + Works with sizes of IFR™ Probe Introducer;
Rectal Linear Probe + Works with sizes of IFR™ Probe Introducer;
FarmScan® L60 Rectal Linear and FarmScan® L60 Rectal Curve are preferred for use in large animals and for echocardiography of horses. Provides Doppler function- heart rate. Excellent choice for Vet echocardiography.
FarmScan® L60 Convex probe is a high-end system for pig-sheep-goat farms that have interesting in the nice image quality and stable quality.
FarmScan® L70, perfect for Pregnancy checking, Backfat checking, Eye muscles.The role of back fat detection:
Swine: back fat, muscle measurements, marbling Bovine: reproduction, back-fat
Sheep: back fat, Loin Muscle Area Scanning
Standoff for measurement of perimeter and area of loin This standoff is necessary for full display of loin eye in a transverse exploration, to perform the perimeter and area measurement.
If the swine is too fat, less reproductive performance, waste feed, increase farm costs;
Too less back fat will drop the utilization years;
sow too fat, more heat intolerance, heart, lung, limb hoof overburdened, hormone imbalances, easy to have a series of problems;
If the swine is too thin, it used too much body storage, bad for multiplication;
Pregnant pig too fat, also easily lead to stillbirth, or even sow death;
Keep a good balance of the back fat will keep the swine performance remained at a high level.
Various Transducer:
3.5MHz Convex array transducer |  | Frequency Bandwidth: 2.0/3.5/5.0MHz | PIG‐SHEEP‐GOAT ANIMAL Applications: Pregnancy diagnosis, Pregnancy control, Counting |
7.5Mhz Linear array transducer |  | Frequency Bandwidth: 5.5/7.5/9.0MHz | EQUINE/LARGE ANIMAL Applications: Obstetrics, Chest/lung exam, Transrectal Examination of Sacroiliac Joints & Lumbo Sacral nerve roots |
6.5Mhz Micro‐convex array transducer |  | Frequency Bandwidth: 5.0/6.0/7.5/8.0MHz | SMALL ANIMAL Applications: Pregnancy control & reproduction diagnosis, Abdominal exams |
3.5Mhz rectal curve array transducer |  | Frequency Bandwidth: 2.0/3.5/5.0MHz | PIG‐SHEEP‐GOAT ANIMAL Applications: Pregnancy diagnosis, Pregnancy control, Counting LARGE ANIMAL Applications: Pregnancy diagnosis, Reproduction, Sexing, Abdominal |
6.5Mhz Rectal linear array transducer |  | Frequency Bandwidth: 5.0/6.5/7.0/8.5MHz | EQUINE/LARGE ANIMAL Applications: Large Animals Reproductive, Equine Tendon |
Image mode: | B,M, 2B, B/M, 4B |
Grayscale levels: | 256 |
Monitor: | • 5.8'' WVGA LCD monitor, wide viewing angle |
Image flip: | Up/down, left/right |
Transducer Type: | Convex Array, Linear Array, Rectal Linear Array |
Transducer frequency: | 2.0‐8.0Mhz |
Transducer connector: | one active transducer connector, unique micro connect |
Probe Frequency: | Adjustable(3 points each probe) |
Frame correlation: | Adjustable |
Scanning depth: | ≥220mm, multi-step |
Dynamic imaging technologies: | Gama correction; Color encode; Image Smoothen |
Focus position | Adjustable |
Posture mark | 15 |
Image process | Histogram, color encode, gama, image smooth |
Zoom: | Real-time zoom |
Measurement | Distance, circumference, heart rate, EDD, area, volume, GA |
Notation | Date, time, name, sex, age, full screen words edit and etc. |
Image Storage: | ≥64 frames; non‐volatile |
Cine loop: | ≥400 frames |
Output report | Regular |
Output | USB2.0, VIDEO( PALD, NTSC) |
Battery continuous work | 4.5 hours |
System dimension: | Height: 120mm Width: 250 mm Depth:40mm |
Weight: | 0.6kg w.o. transducer |
Language: | Software: English |
Standard Configurations: | FarmScan® L60 main unit |
Optional: | Rectal linear array transducer (6.0/7.5/8.5/10.0MHz) |
Probe | 3.5Mhz Convex probe/Rectal convex probe | 7.5Mhz Linear probe/Rectal Linear Probe | 6.5Mhz Micro-convex probe |
Detect Depth(mm) | ≥140 | ≥80 | ≥90 |
Lateral Resolution/mm | ≤3 （depth ≤80） ≤5 （80＜depth ≤130） | ≤1 （depth ≤60） | ≤3 （depth ≤60） |
Axial Resolution/mm | ≤1 （depth ≤80） | ≤1 （depth ≤80） | ≤1 （depth ≤60） |
Blind zone (mm) | ≤3 | ≤6 | ≤5 |
Geometric position precision (Horizontal) | ≤5 | ≤7.5 | ≤7.5 |
Geometric position precision (Vertical) | ≤5 | ≤5 | ≤5 |
Image mode: | B,M, 2B, B/M, 4B |
Grayscale levels: | 256 |
